Εσωτερικό Cat6a Ethernet καλώδιο του τοπικού LAN SFTP STP για τις τηλεπικοινωνίες

Cat6a SFTP STP Indoor Fast Speed Cat 6a Network Cable Ethernet Lan Cable



Product Description

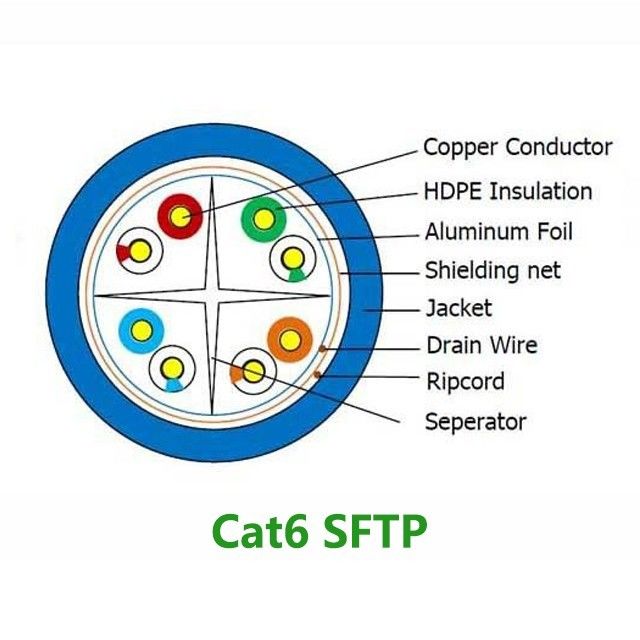

Structure	4P+F+MAB Twisted Pair	Rated Temperature	75℃
Conductor	Solid or stranded bare copper	Impedance	100±15%Ω
Insulation	HD-PE	Frequency	250MHz
Inner Jacket	PVC	Outer Jacket	LDPE
Shield	Mylar	Inner Shielded	AL-Foil 125%(min)Coverage
Reference Standard	YD / T 1019-2001.ISO / IEC 11801.ANSI / TIA / EIA-568B.UL444
Flame Retardancy Standard	CM,CMR	Outer Shielded	Braiding 80%(min)Coverage

Cabing Standards Meet

10BASE-T,10BASE-TX,10BASE-T4,1000BASE-T,the effective bandwidth of date layer is 1Gbit/s(Cat6),10Gbit/s(Cat6A),

the maximum transmission distance is 100 meters.Cross isolation structure and the thicker jacket effectively avoid the crosstalk between each pair of the cable.Single shield structure,make the cable have strong anti-interference ability to the outside world and transmit the signal in confidence.

Application

Mainly used in the wiring system betweenwork area correspondence leading-out terminal and distribution wiring frames connection.As well as used in the housing synthesis wiring system between user correspondence leading out terminal and patch pannel.

Model	Name	AWG	Conductor (mm)	Nominal od (mm)	Ω/km Conductor resistance	Package	Color
610	CAT6 SFTP	23	1/0.56	7.20	74.30	305m/box	Optional
611	CAT6 SFTP	23	1/0.574	7.60	70.08	305m/box	Optional
612	CAT6 SFTP	23	1/0.58	7.60	68.5	305m/box	Optional







Packing & Shipping
1) Packing Lengths: 100/roll, 200m/roll, 300m/roll, 305m/roll, 500m woden reel, 1000m wooden reel
2) Inner Packing: Wooden reel, plastic reel, and paper reel
3) Outer Packing: Carton box, pull out box, pallet available
4) Other packing available according to clients' request
5) Usually we deliverour products by SEA. Other delivery methods are available upon request from clients.

Our service
1) Quick Response -- All inquiries will be replied within 24 hours.
Professional Quotation -- All pricing will be quote according to customers' detailed specifications & requirements.
2) OEM & ODM Service -- Can print your own brand on the cable printing with foot or meter marking. -- Make customized designs for stickers, drums, outer cartons, etc.
3) Stable Quality -- All materials and products passed restrict QC procedures, compliant with international standards.
4) Fast Delivery -- LCL orders, 15 Days after confirmation; FCL orders, 20 days after confirmation.
5) Good After-sales Service -- We chose the fastest vessel to POD for delivery our goods to clients, -- All Documents will be issued according to clients' instructions, to save troubles from local customs. -- Any complaint to quality or packing issued will be responded, and terminated with proper solutions for clients.

What is the process of an order?

Send your detailed request → Feedback with quotation → Confirm quotation and make payment → Make artwork for approval→Make mould→Mold testing→Making samples→Sample testing(Approval) →Mass production→Quality checking→Packing →Delivery →After Service→Repeat Order...

Good after-Sale Service

1) All products will have been strictly Quality Checked in house before packing.

2) All products will be well packed before shipping.

5. Faster delivery

Sample order in stock, and 3-7 days for bulk production.

6. Shipping:

We have strong cooperation with DHL, TNT, UPS, FEDEX, EMS, China Air Post.

FAQ

Q1: Are you a factory or trading company?
A1: We are a manufacturer.

Q2: Where is your factory located? How can I visit there?

A2:Our factory are located in dongguan city.

You can fly to Guangzhou international airport. And tell us your flight No. We will arrange to pick you up.

Q3: May I buy samples from you?

A3: Yes! You are welcome to place sample order to test our superior quality and services.

Q4: What is your Warranty?

A4: All the products will have 12 months Warranty

Q5:What payment method do you accept?

A5:T/T(Bank transfer), , Money Gram, Paypal, etc.

Q6: Can you put my brand name (logo) on these products?

A6: Yes! The professional OEM services will be welcomed to us. Our factory accepts to make the logo free for bulk orders.

Q7: May I know the status of my order?

A7: Yes .The order information and photos at different production stage of your order will be sent to you and the information will be updated in time.

Q8: What’s the leading time? (How long do you need to prepare my goods?

A8: Delivery (no more than 1000pcs) will be arranged within 3-7 days after payment, and arrive you within about 3-7 working days via international express.

Q9: How will you deliver my goods to me?

A9: Your purchases will be delivered by DHL, UPS, FedEx, TNT, EMS your door. Air Cargo and Sea Cargo, Direct line, Air Mail also be accepted according to clients' request.

Q10: Can you provide us more other products to us to help us to save more shipping costs?

A10: Yes. There’re kinds of HDMI Cables, VGA Cables, DVI Cables, Data USB cables, Display port on DB 9, DB 25, Aux Audio and video Cables, Cat network LAN Cables will be the main products line of Nengjie Factory. The OEM bulk order will be accept as well
